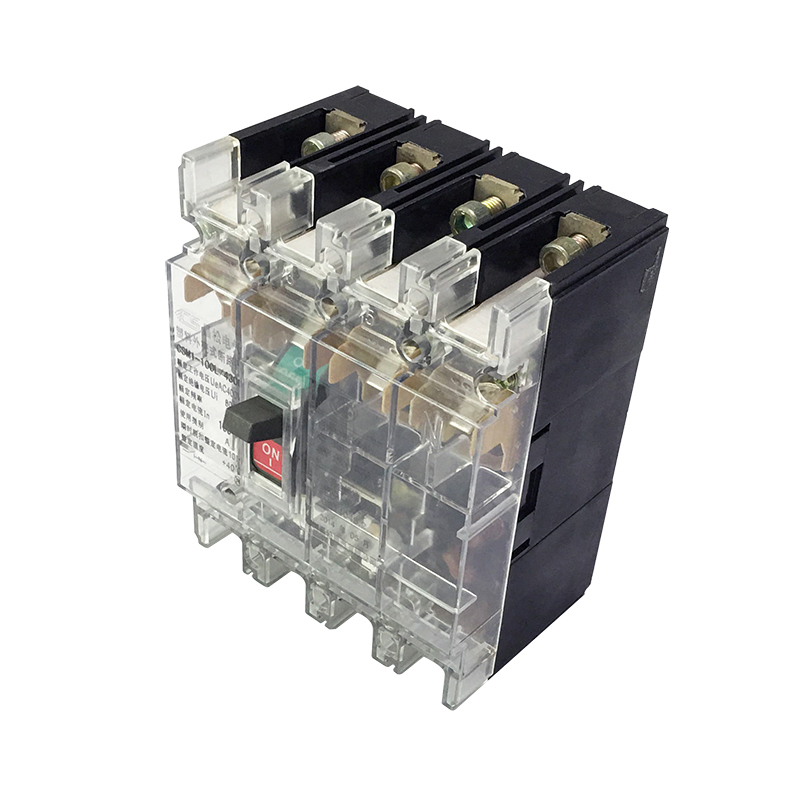

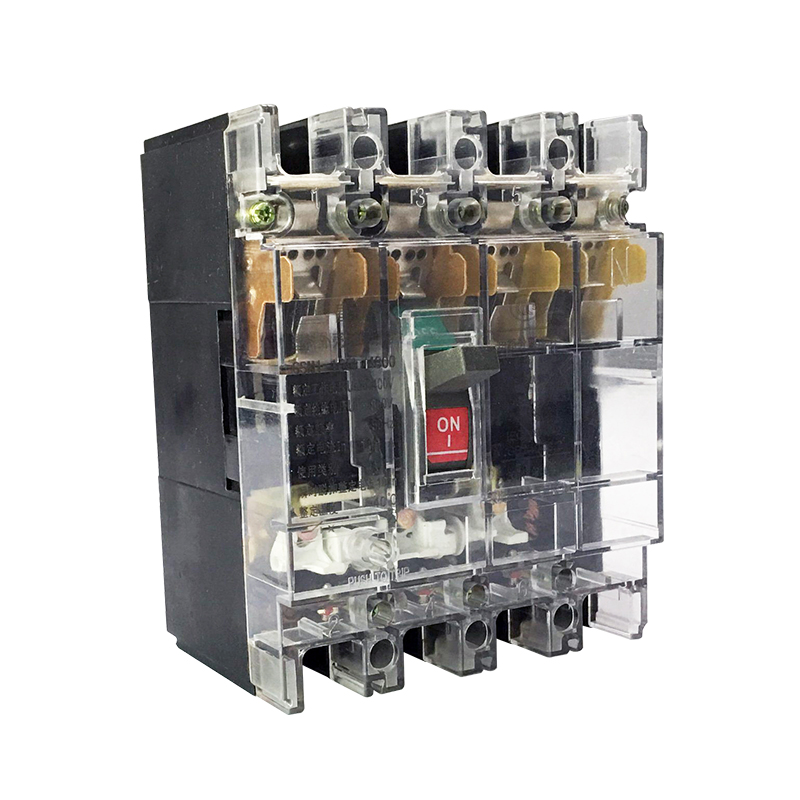

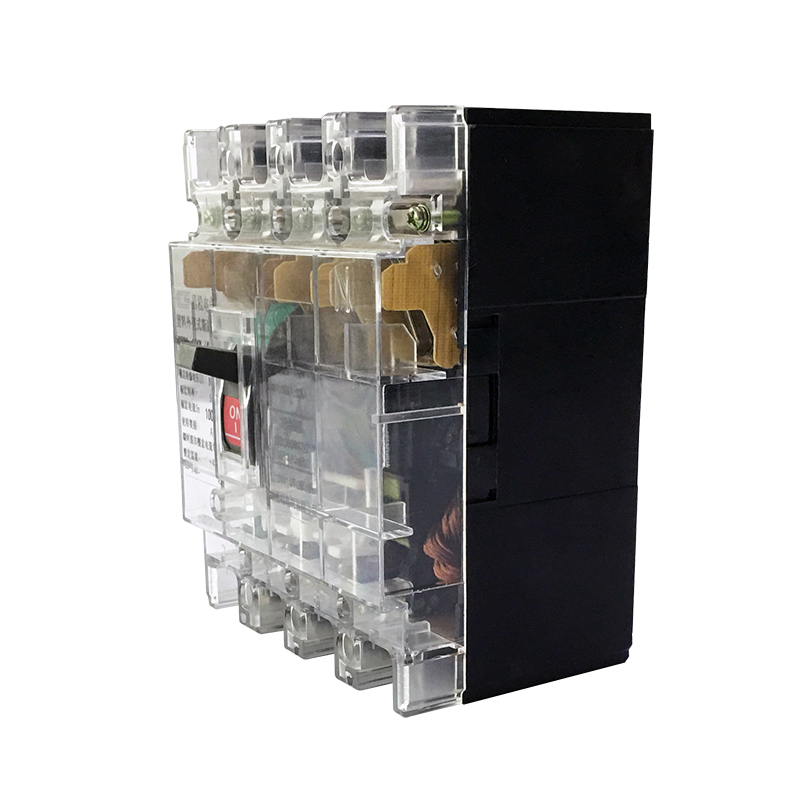

CM1 Transparent
CNCSGK
| Quantity: | |
|---|---|
APPLICATION
CM1 Transparent Series MCCB is new type product developed and manufactured by adopting international advanced technology. MCCB is a supplied with rated insulation voltage 800V and used for circuit of AC 50HZ, raged operating voltage AC 380V or below rated operation current up to 660A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the MCCB is capable of preventing damage of circuits and supplying unites. The confirms to IEC60947-2 standard.
SPECIFICATION
Type | Rated current (A) | Number of Poles | Rated insulation Voltage (V) | Rated operating voltage (A) | Arcing-over distance (mm) | Ultimate short circuit breaking capacity (KA) | Service short circuit breaking capacity (KA) | Operation performance |
ON OFF | ||||||||
CM1-63L | 6,10,16,20, 25,32,40,50,63 | 3P,4P | 660V | 380V | 0 | 25 | 18 | 1500 8500 |
CM1-63M | 0 | 50 | 35 | |||||
CM1-100C | 10,16,20,25, 32,40,50,63, 80,100 | 0 | 25 | 18 | ||||
CM1-100L | 0(≤50) | 35 | 22 | |||||
CM1-100M | 0(≤50) | 50 | 35 | |||||
CM1-100H | 0(≤50) | 85 | 50 | |||||
CM1-225C | 100,125,160, 180,200 | ≤50 | 25 | 18 | 1000 7000 | |||
CM1-225L | ≤50 | 35 | 22 | |||||
CM1-225M | ≤50 | 50 | 35 | |||||
CM1-225H | ≤50 | 85 | 50 | |||||
CM1-400C | 225,250, 315,350,400 | ≤50 | 35 | 25 | 1000 4000 | |||
CM1-400L | ≤50 | 50 | 35 | |||||
CM1-400M | ≤50 | 65 | 42 | |||||
CM1-630C | 400,500,630 | ≤100 | 35 | 25 | ||||
CM1-630L | ≤100 | 50 | 35 | |||||
CM1-630M | ≤100 | 65 | 42 | |||||
CM1-630H | ≤100 | 100 | 65 | |||||
CM1-800M | 630,700,800 | ≤100 | 65 | 42 | ||||
CM1-800H | ≤100 | 100 | 65 |
