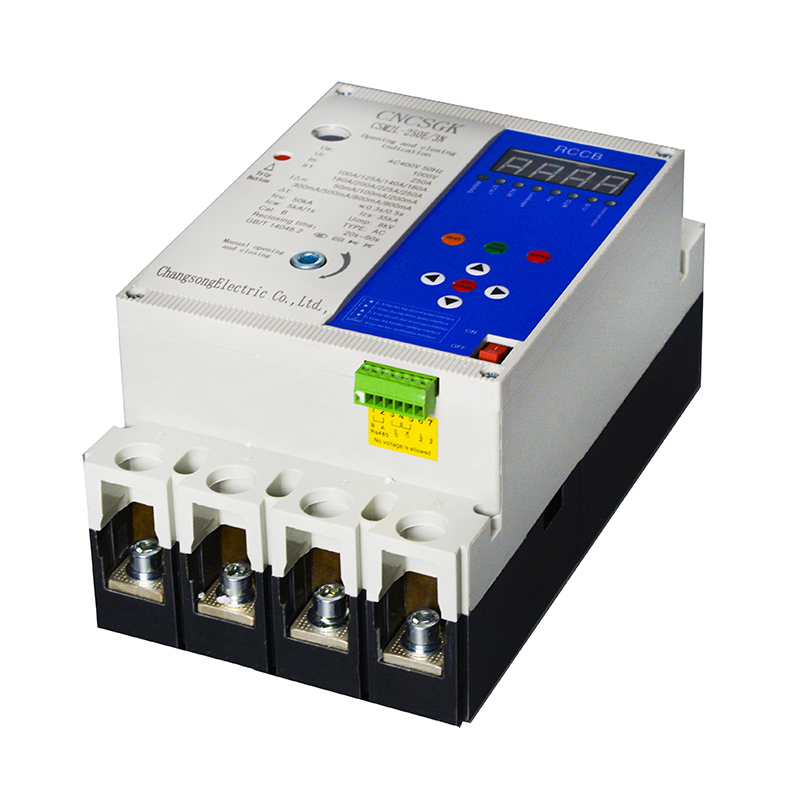

Photovoltaic Automatic Breakers Auto Self Reclosing RCCB CSM2L ELCB RCCB MCCB

  • CSM2L

  • CNCSGK

Availability:
Quantity:

Product Description

residual current operation circuit breaker(shortened as auto reclosing) is a newly-developed new-generation integrative multi-functional product which adopts patent technology and conforms to all intelligent requirements of state grid administration. It's the priority product to cooperate with China National Grid. It is equipped with functions of short-circuit, over-current, residual current, phase failure, off zero and special wave; Apart from these, we also have residual current display, real-time load current display, phase voltage display, on-off indication, time display and fault inquiry; What's more, it has functions of auto-reclosing after residual current operation circuit breaker acts when residual current, under-voltage, overvoltage, phase failure happens. It is used in power distribution circuit of AC 50Hz rated insulation voltage 800V(690V for 100A frame current), rated voltage 380/400V,rated current 40A-630A to distribute energy and protect circuit line.
      It is widely used in three phase four wire neutral point directly grounded(TT system) LV grid to provide indirect contact protection against personal electric shock hazard and also is used to protect against grounding fault, over-current and short circuit of circuit or equipments.

Conformity Standard
Conforms to GB14048.2 standard

Main Technical Parameter
1. Technical Specification
Frame100250
Rated insulation voltage Ui(V)690800
Rated impulse withstand voltage Uimp(kV)66
Rated working voltage Ue(V)380/400380/400
Working categoryAA
Breaking capacity Icu/Ics35/17.550/25
Rated current(A)Thermalelectromagnetic type40/50/63/80/100100/125/160/180/200/225/250
Electronic type40-100(adjustable)100-250 (adjustable)
Rated residual operation current IΔn(mA)75/150/300/50075/150/300/500
Rated residual no-operation current (mA)1/2IΔn
Maximum breaking time (s)0.2/0.5/OFF(residual current alarm no trip)
Re-closing time (s)20-60
Residual operation typeAC
Weight (kg)34

Frame400630
Rated insulation voltage Ui(V)800800
Rated impulse withstand voltage Uimp(kV)66
Rated working voltage Ue(V)380/400380/400
Working categoryAA
Breaking capacity Icu/Ics70/3570/35
Rated current(A)Thermalelectromagnetic type200/250/315/350/400400/500/630
Electronic type160-400(adjustable)250-630(adjustable)
Rated residual operation current IΔn(mA)100/150/300/500100/300/500/1000
Rated residual no-operation current (mA)1/2IΔn
Maximum breaking time (s)0.2/0.5/OFF(residual current alarm no trip)
Re-closing time (s)20-60
Residual operation typeAC
Weight (kg)1012
Note: We can customize any of the four types(75mA, 150mA, 300mA, 500mA) for 100/250 frame.

We can customize any of the four types(100mA, 150mA, 300mA, 500mA) for 4001/630 frame.


2. Protection Characteristics of Thermal Electromagnetic Over-current Release
Ambivalent TemperatureTesting CurrentRelease TimeCondition
≤6.3>6.3
+40°C1.05Inno trip within 1hno trip within 2hcold starts
1.3Intrip within 1htrip within 2hhot starts
suitable for  any temperature10In<0.2s<0.2scold starts
3. Protection Characteristics of Electronic Type Overload Long-time Delay

ItemParameter range
Current setting value Ir(A)Ir=0.4~1.0×In+OFF, adjusting step=1A; protection off
Action CharacteristicsI≤1.05Ir, 2h no act; I≥1.3Ir,
Delay setting value Tr(s)
@1.5Ir; Accuracy±15%
812162432486496128256
1.5Ir812162432486496128256
2.0Ir4.56.75913.51827365472144
6.0Ir0.50.7511.52346816
7.2Ir0.350.520.91.040.132.082.784.175.5611.11
4. Short-circuit Instantaneous Protection

ItemParameter range
Current setting value Ir(A)Ir=2.0~1.0×In+OFF, adjusting step=0.1×In; protection off
Action CharacteristicsI≤0.85Ii, no act; I≥1.15Ii, Act time≤70ms
5. Voltage protection (The function can be set ON and OFF.)

Under-voltage Protection Parameters

ItemSetting RangeStep
Protection Setting Value154V~187V+OFF1V
Protection Delay Setting Value1~10s1s
Working ModeTrip/Off/Measure/Protection Accuracy: ±5%
Over-voltage Protection Parameters
ItemSetting RangeStep
Protection Setting Value253V~286V+OFF1V
Protection Delay Setting Value1~10s1s
Working ModeTrip/Off/Measure/Protection Accuracy: ±5%
